RS-850A DC Motor 12v 24v high torque micro dc motor for Cordless Power Tool and Boat

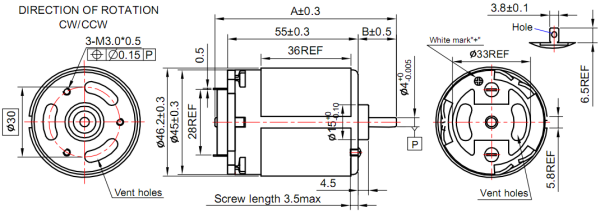

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RS-850SA | 23160R | 6.0-12.0 | 12 | 2750 | 0.13 | 2289 | 0.65 | 23 | 234.6 | 5.52 | 137.3 | 1400 | 3.2 |
| 27190R | 6.0-12.0 | 12 | 2250 | 0.11 | 1893 | 0.58 | 24.9 | 254 | 4.93 | 156.9 | 1600 | 3.1 | |
| 23245R | 6.0-12.0 | 24 | 3300 | 0.1 | 2838 | 0.59 | 29.8 | 304 | 8.9 | 212.8 | 2170 | 3.6 | |
| 29146R | 6.0-24.0 | 24 | 6135 | 0.19 | 5406 | 1.05 | 38.3 | 391 | 21.75 | 323.5 | 3300 | 10.13 | |
