EG-530 6V 9V high torque 2400r/min dc electric motor for Tape recorder and dubbing machine

Short Description:

This is a dc motor.The features of this product include Stable performance, strong torque, high quality, and low noise.It can be applied to Tape recorder, dubbing machine, small machinery.In addition, we provide specialized on-demand customization services,welcome to inquire.

CONTACT NOW

Product Detail

Product Tags

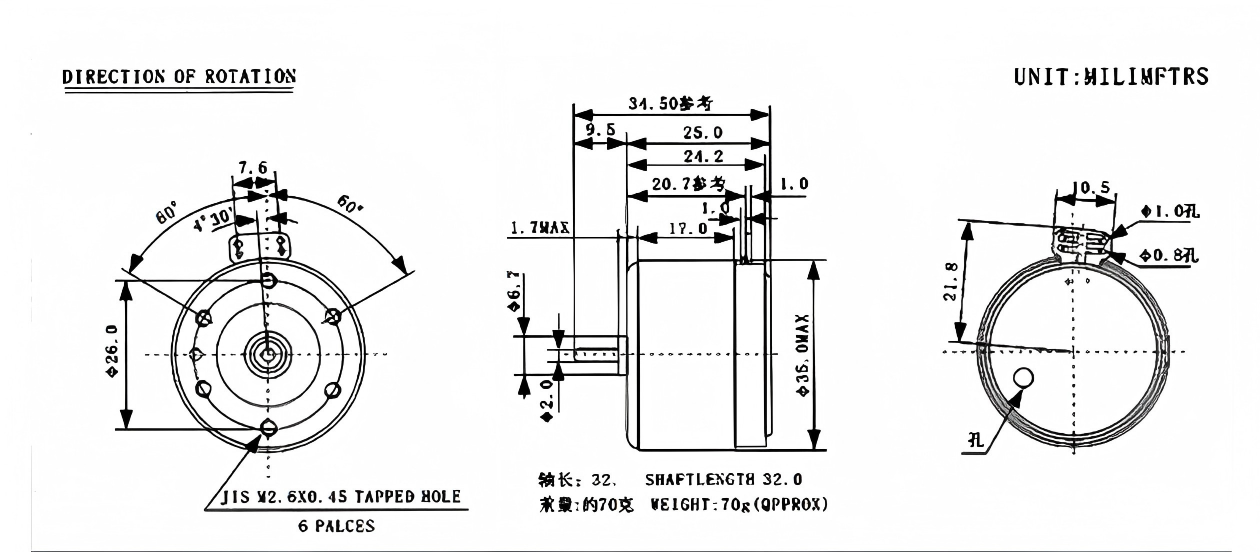

OUTLINE DRAWING： Unit:mm

TECHNICAL DATASHEETS：

MODEL	Rated Voltage	Operating Voltage	Rated Load	Rated Speed	Rated Current	Load	Stall Torque
MODEL	V	V	g.cm	r/min	mA	r/min/g.cm	g.cm
MBI-EG-530	6	4.2-7.5	8.0	2400±2%	132	9.0	38/4.2V
MBI-EG-530	9	6-11	8.0	2400±2%	92	9.0	50/6.0V
MBI-EG-530	12	8.4-15	8.0	2400±2%	73	9.0	60/8.4V
