8220-8235 Motor Servo 4.8v 8.4v brushless motor for Car model and Robotic arm

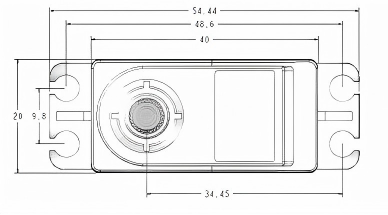

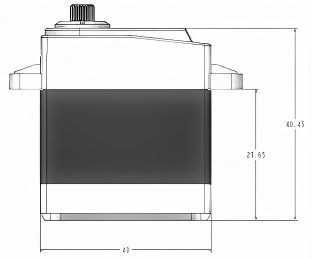

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Product name | Product size | Working voltage | No-load speed | No-load current | Stall torque | Stall current | Control signal | Pulse | Midpoint position | Rotation angle | Dead zone width |
| 8220 | 40.0*40.5*20.0mm weight：60g±5% |
4.8V | 0.11sec/60° | 290mA | 19.0kg.cm | 3200mA±10% | Pulsewidthmodification | 500~2500usec | 1500usec |
180°±3°(when500～2500usec) | 3usec |
| 8.4V | 0.09sec/60° | 630mA | 23.0kg.cm | 4170mA±10% | |||||||
| 8225 | 40.0*40.5*20.0mm weight：60g±5% |
4.8V | 0.12sec/60° | 290mA | 19.0kg.cm | 3200mA±10% | Pulsewidthmodification | 500~2500usec | 1500usec |
180°±3°(when500～2500usec) | 3usec |
| 8.4V | 0.10sec/60° | 630mA | 23.0kg.cm | 4170mA±10% | |||||||
| 8230 | 40.0*40.5*20.0mm weight：60g±5% |
4.8V | 0.13sec/60° | 320mA | 29.0kg.cm | 2700mA±10% | Pulsewidthmodification | 500~2500usec | 1500usec |
180°±3°(when500～2500usec) | 3usec |
| 8.4V | 0.10sec/60° | 630mA | 32.0kg.cm | 4500mA±10% | |||||||
| 8235 | 40.0*40.5*20.0mm weight：60g±5% |
4.8V | 0.13sec/60° | 320mA | 34.0kg.cm | 2700mA±10% | Pulsewidthmodification | 500~2500usec | 1500usec |
180°±3°(when500～2500usec) | 3usec |
| 8.4V | 0.12sec/60° | 630mA | 37.0kg.cm | 4700mA±10% |
