9412 Servo Motor High control precision 4.8v 7.2v brushless motor for Sports car and Drift car

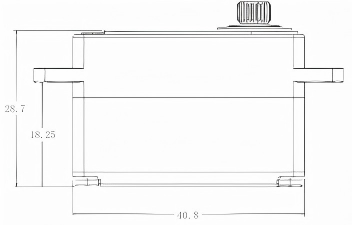

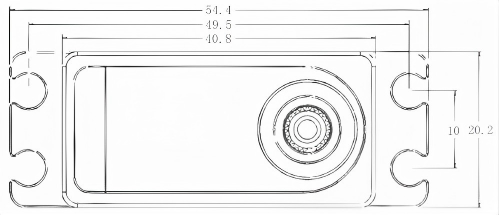

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Product name | 9412MG | |||
| Product size | 40.8*20.2*28.7mm | weight：60g±5% | ||
| Working voltage | 4.8V | 7.2V | ||
| No-load speed | 0.12sec/60° | 0.09sec/60° | ||
| No-load current | 210mA | 260mA | ||
| Stall torque | 11.5kg.cm | 14.5kg.cm | ||
| Stall current | 2000mA±10% | 2700mA±10% | ||
| Control signal | Pulse width modification | |||
| Pulse | 500~2500usec | |||
| Midpoint position | 1500usec | |||
| Rotation angle | 180°±3°(when 500~2500usec) | |||
| Dead zone width | 5usec | |||
