FC-140A 10mm 12v dc mini motor electric Carbon Steel Shaft high speed dc motor for Rearview Mirror

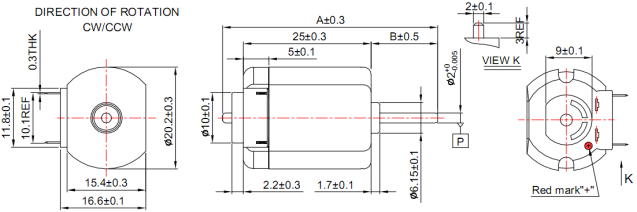

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FC-140RA | 09490 | 9.0-15.0 | 12 | 7900 | 0.042 | 5910 | 0.12 | 1.03 | 10.5 | 0.63 | 4.07 | 42 | 0.37 |
| FC-140PA | 11260 | 6.0-9.0 | 9 | 8100 | 0.07 | 6310 | 0.25 | 1.76 | 18 | 1.17 | 8.0 | 81.6 | 0.87 |
| FC-140PA | 17132 | 6.0-12.0 | 12 | 21500 | 0.21 | 17681 | 0.97 | 3.8 | 38.7 | 7.1 | 21.6 | 220 | 4.5 |
| FC-140PH | 15145 | 6.0-9.0 | 7.5 | 12000 | 0.105 | 9763 | 0.46 | 2.237 | 22.37 | 2.24 | 12.0 | 120 | 2.01 |
| FC-140SA | 08510 | 6.0-24.0 | 24 | 12000 | 0.045 | 9469 | 0.17 | 2.214 | 22.14 | 2.15 | 10.5 | 104.97 | 0.64 |
| 10350 | 6.0-12.0 | 12 | 8200 | 0.045 | 6475 | 0.17 | 1.7 | 17.3 | 1.7 | 7.8 | 79.6 | 0.63 | |
