2812 BL DC Motor 7.4v Metal high speed dc brushless motor for Air cooler fan and Stirrer

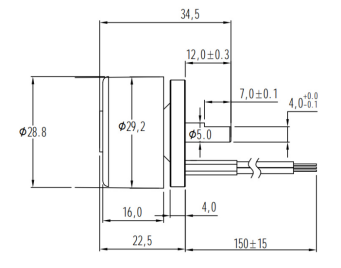

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| 2812 | 7.4-12.0 | 7.4 | 3762 | 0.52 | 3262 | 2.03 | 22.6 | 2.26 | 7.72 | 36 | 3.6 | 3.45 | |
