3626 BL DC Motor 12V 36mm DC Brushless Vibration Motor for Cervical and Neck massager

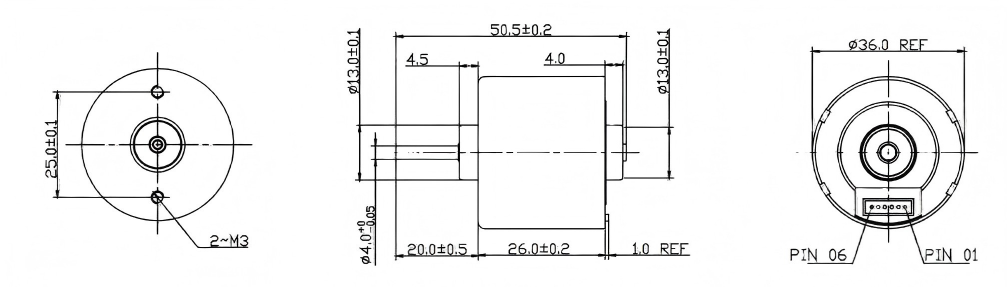

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| 3626 | 7.4-12.0 | 12 | 7850 | 0.69 | 4338 | 3.25 | 44.8 | 4.48 | 20.3 | 56.9 | 5.69 | 3.36 | |
