3525 BL DC Motor 7.4V high speed high torque dc brushless motor for Therapeutic gun

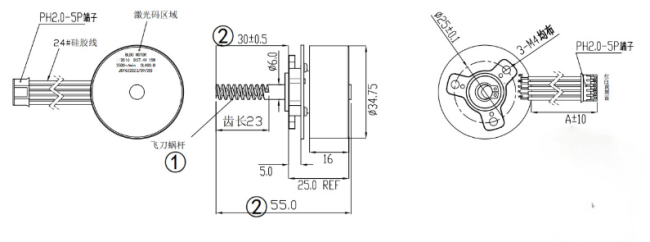

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| 3520 | 7.4-12.0 | 7.4 | 2812 | 0.448 | 1400 | 3.12 | 69.9 | 6.99 | 10.25 | 109.9 | 11 | 4.9 | |
