3812 Strong magnet BL DC Motor 12V high speed dc brushless motor for Air purifier

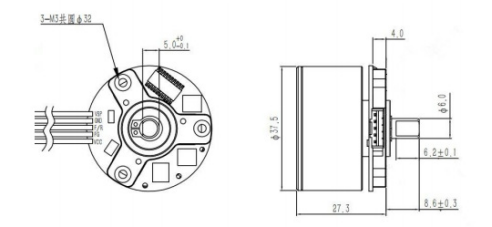

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Feature point | Voltage | Current | Input power | Torque | Speed | Output power | Efficiency | Time |
| V | A | W | mN.m | rpm | W | % | S | |
| No_Load | 12.10 | 0.503 | 6.089 | 1.1 | 4347 | 0.519 | 8.5 | 0.000 |
| Rated | 12.00 | 3.429 | 41.15 | 80.0 | 3039 | 25.41 | 61.8 | 27.48 |
| Eff_max | 12.05 | 2.142 | 25.81 | 45.0 | 3598 | 16.94 | 65.7 | 21.14 |
| Pout_max | 11.91 | 5.838 | 69.52 | 139.4 | 2085 | 30.42 | 43.8 | 35.23 |
| Torque_max | 11.85 | 7.414 | 87.89 | 174.9 | 1453 | 26.60 | 30.3 | 39.25 |
| End | 11.85 | 7.414 | 87.89 | 174.9 | 1453 | 26.60 | 30.3 | 39.25 |
