0412 Mini Hollow Cup Motor 3.7V high speed micro DC Coreless Motor for Beauty instrument products

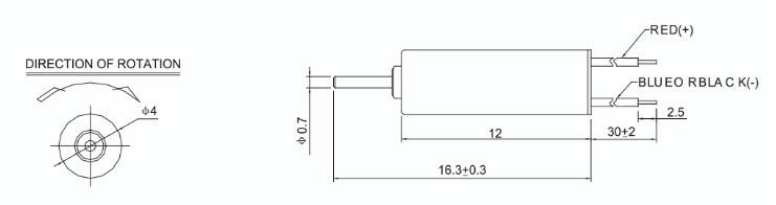

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | mNm | g.cm | A | ||
| MBI412- Q37040550 |
2.5-4.5 | 3.7 | 55000 | 0.04 | 45000 | 0.15 | 0.039 | 0.4 | 0.21 | 2.2 | 0.45 | |
