0408-1 Hollow Cup Motor 3V high speed vibration motor micro dc coreless motor for Beauty products

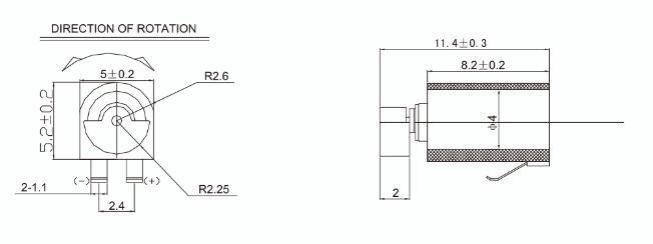

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | Rated Voltage |
Operating Voltage |
Counter Weight |
Rated Speed | Rated Current |
Stall Current |
Armature Resistance |
Starting Voltage |
| V | V | RPM | mA | mA | Q | V | ||
| MBI408- Z13060110 |
1.3 | 1.0-1.6 | R1.9*3.0 | 11000±2000 | 60 | 90 | 13.8 | 0.9max |
| MBI408- Z30070100 |
3 | 2.0-3.5 | R2.5*2.8 | 10000±2000 | 70 | 90 | 31.5 | 1.1max |
| MBI408- Z30065130 |
3 | 2.0-3.5 | R2.2*2.0 | 13000±2000 | 65 | 90 | 31.5 | 1.1max |
