0410 Hollow Cup Motor 3V High-Speed micro dc coreless motor for Breast enhancement instrument

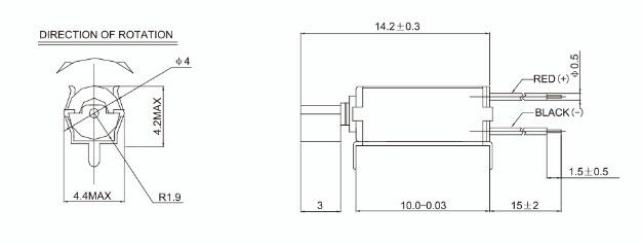

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | mNm | g.cm | A | ||
| MBI-410- Q13040220 |
1.0-2.0 | 1.3 | 22000 | 0.037 | 15400 | 0.059 | 0.029 | 0.3 | 0.098 | 1 | 0.106 | |
| MBI410- Q30035375 |
2.5-3.0 | 3 | 37500 | 0.035 | 25000 | 0.053 | 0.019 | 0.2 | 0.176 | 1.8 | 0.088 | |
