2830 BL DC Motor 7V Metal Gear Case dc brushless motor for Therapeutic gun and Stirrer

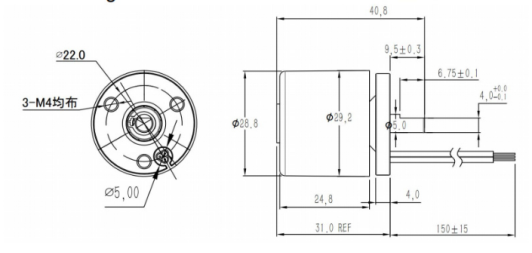

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Feature point | Voltage | Current | Input power | Torque | Speed | Output power | Efficiency | Time |
| V | A | W | mN.m | rpm | W | % | S | |
| No_Load | 7.467 | 0.455 | 3.401 | 1.1 | 3669 | 0.415 | 12.2 | 0.000 |
| Rated | 7.408 | 2.151 | 15.94 | 35.0 | 2762 | 10.08 | 63.3 | 27.36 |
| Eff_max | 7.429 | 1.522 | 11.31 | 23.9 | 3038 | 7.602 | 67.2 | 25.12 |
| Pout_max | 7.344 | 4.005 | 29.41 | 73.0 | 1771 | 13.54 | 46.0 | 33.15 |
| Torque_max | 7.258 | 6.481 | 47.04 | 116.8 | 582 | 7.115 | 15.1 | 37.97 |
| End | 7.258 | 6.481 | 47.04 | 116.8 | 582 | 7.115 | 15.1 | 37.97 |
