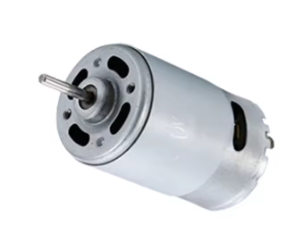

RS-560/565H 12V dc motor Electric motor high speed dc motor for Cordless Power Tool

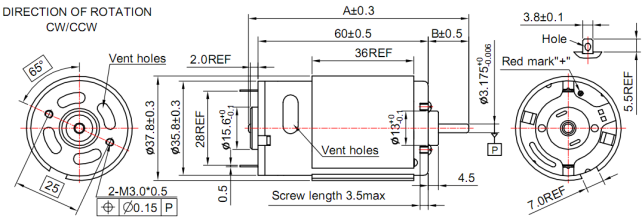

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RS-560SH | 3775R | 6.0-12.0 | 12 | 5800 | 0.27 | 5030 | 1.76 | 28.6 | 292 | 15.1 | 215.7 | 2200 | 11.5 |
| 28126R | 6.0-12.0 | 12 | 3500 | 0.12 | 3026 | 0.77 | 20.71 | 207 | 6.56 | 152.9 | 1529 | 4.9 | |
| RS-560PH | 7021 | 6.0-12.0 | 12 | 25000 | 1.8 | 21803 | 12.27 | 47 | 479.4 | 107.38 | 368 | 3753.6 | 83.7 |
| RS-565SH | 22116R | 6.0-12.0 | 12 | 4100 | 0.076 | 3560 | 0.5 | 24.5 | 250 | 9.16 | 186.3 | 1900 | 3.3 |
| RS-565PH | 5023 | 6.0-24.0 | 13 | 12600 | 0.84 | 10733 | 4.83 | 38.18 | 381 | 42.91 | 257.7 | 2577 | 27.78 |
| 7226R | 6.0-12.0 | 12 | 16600 | 1.1 | 14785 | 8.96 | 54.15 | 541 | 83.84 | 495.24 | 4952 | 72.99 | |
| 2785R | 6.0-15.0 | 13.5 | 3000 | 0.11 | 2632 | 0.52 | 19.6 | 200 | 5.4 | 147.1 | 1500 | 3.87 | |

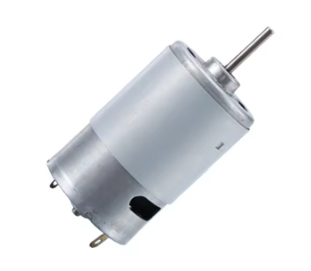

PRODUCT DISPLAY
 |
 |
 |
