RS-560A DC Motor High Speed 6v 12v dc micro motor high torque for Cordless Power Tool

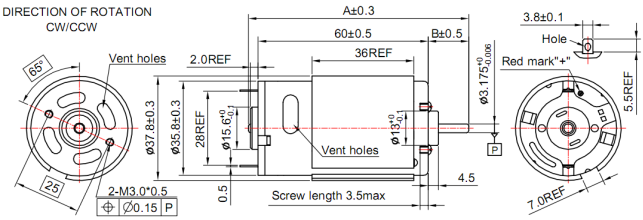

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RS-560PA | 22235R | 6.0-24.0 | 12 | 1700 | 0.07 | 1416 | 0.35 | 18.04 | 184 | 2.68 | 108 | 1101.6 | 1.74 |
| 3775 | 3.0-18.0 | 12 | 5800 | 0.28 | 5000 | 1.8 | 29 | 290 | 15.1 | 220 | 2200 | 2.65 | |
| 3783R | 6.0-12.0 | 6 | 2450 | 0.19 | 2051 | 0.98 | 17.94 | 183 | 3.85 | 110 | 1122 | 5.01 | |
