FS-390/395SA DC Motor 12V 24V High Speed High Power Large Torque electeic motor for Exhaust Fan

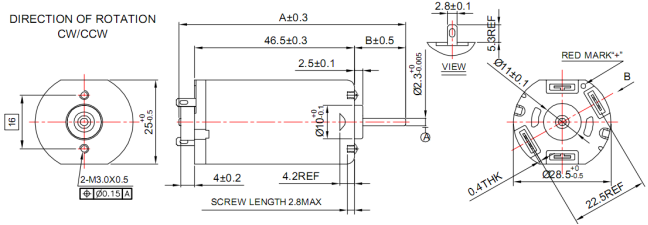

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FS-390SA | 18190 | 6.0-12.0 | 12 | 4500 | 0.11 | 3582 | 0.44 | 9 | 91.8 | 3..22 | 44 | 448.8 | 1.8 |
| FS-390PA | 3333 | 6.0-12.0 | 12 | 16000 | 0.38 | 13892 | 2.5 | 16 | 163.2 | 23.31 | 121.6 | 1240 | 16.5 |
| 19100 | 6.0-24.0 | 24 | 9500 | 0.14 | 8033 | 0.77 | 14.8 | 151 | 12.49 | 96.1 | 980.22 | 4.2 | |
