RS-360/365SA DC Motor 24 volt High-Speed high torque Brush electric dc motor for Foot Bath/Hair Dryer

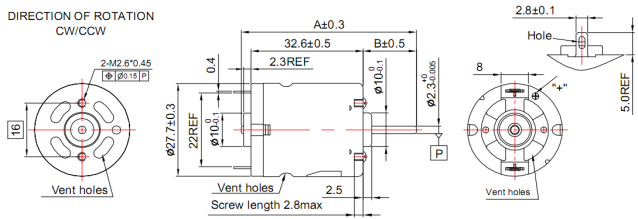

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RS-365PA | 16120 | 6.0-12.0 | 12 | 7537 | 0.09 | 6218 | 0.42 | 5.42 | 54.26 | 3.47 | 31 | 310.07 | 1.98 |
| 2265 | 6.0-24.0 | 15 | 17590 | 0.31 | 14396 | 1.4 | 9.07 | 90.78 | 13.43 | 49.9 | 499.94 | 6.31 | |
| RS-360PA | 23143 | 6.0-12.0 | 8 | 7890 | 0.2 | 6477 | 0.92 | 6.82 | 68.26 | 4.54 | 38.1 | 381.15 | 4.22 |
| RS-360SA | 13370 | 6.0-12.0 | 12 | 4500 | 0.04 | 3716 | 0.19 | 3.75 | 38.3 | 1.46 | 21.5 | 220 | 0.9 |
| 27105 | 2.0-8.0 | 3.6 | 5000 | 0.2 | 4100 | 0.8 | 3.9 | 40 | 1.7 | 23 | 235 | 3.8 | |
| 14290 | 6.0-24.0 | 24 | 12407 | 0.1 | 10399 | 0.52 | 0.74 | 7.45 | 8.11 | 4.6 | 46.03 | 2.7 | |
| 11520 | 6.0-24.0 | 24 | 7100 | 0.05 | 5671 | 0.23 | 4.54 | 46.3 | 2.7 | 25.5 | 260 | 1.06 | |
| RS-365SA | 15113 | 6.0-12.0 | 12 | 7800 | 0.14 | 6153 | 0.52 | 5.59 | 57.3 | 3.6 | 26.5 | 270 | 1.96 |
| 10250 | 18.0-30.0 | 24 | 8000 | 0.07 | 6160 | 0.22 | 4.1 | 41 | 2.6 | 18 | 180 | 0.73 | |
| 12153 | 12.0-24.0 | 24 | 14500 | 0.13 | 11300 | 0.45 | 4.5 | 46 | 5.3 | 19.6 | 200 | 1.6 | |
| 8365 | 6.0-24.0 | 24 | 5420 | 0.033 | 4109 | 0.1 | 2.8 | 28.6 | 1.21 | 11.8 | 120 | 0.33 | |
