RS-390/395H DC Motor 12v 24v high speed and torque brush 3Slots / 5Slots Armature for Vacuum Cleaner

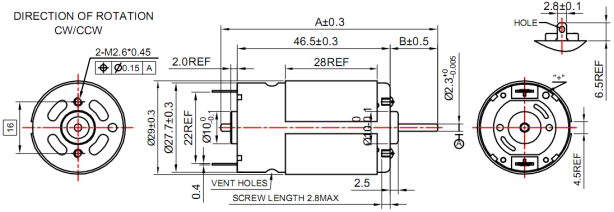

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RS-390PH | 5032 | 3.0-12.0 | 12 | 26800 | 0.89 | 23600 | 6.75 | 239 | 23.45 | 57.85 | 201.18 | 2050 | 51.2 |
| 5030 | 4.0-9.0 | 7.2 | 18000 | 72 | 15300 | 4.09 | 13.7 | 140 | 21.98 | 91.6 | 934 | 23.1 | |
| 5128 | 4.0-7.0 | 6 | 17200 | 0.6 | 14460 | 3.15 | 9.51 | 97 | 14.39 | 59.7 | 609 | 16.6 | |
| RS-395PH | 10220 | 12.0-25.0 | 24 | 3900 | 0.04 | 3078 | 0.15 | 5.92 | 60.3 | 1.9 | 28.07 | 286 | 0.56 |
| 2168 | 9.0-13.0 | 12 | 7500 | 0.15 | 6126 | 0.68 | 8.33 | 85 | 5.34 | 45.5 | 464 | 3.05 | |
| 1890 | 12.0-30.0 | 24 | 10500 | 0.11 | 8800 | 0.7 | 12.6 | 126 | 11.4 | 78 | 780 | 3.76 | |
| RS-390SH | 20156R | 6.0-12.0 | 12 | 5000 | 0.08 | 4243 | 0.33 | 6.07 | 61.9 | 2.72 | 42.2 | 430 | 2.22 |
| 4524 | 1.0-3.0 | 2.6 | 7673 | 0.62 | 6391 | 3.09 | 7.87 | 78.74 | 5.17 | 47.1 | 471.3 | 15.4 | |
| 21130 | 6.0-13.0 | 12 | 7200 | 0.12 | 6047 | 0.63 | 7.83 | 79.8 | 4.95 | 48.87 | 498 | 3.3 | |
| 3849 | 6.0-12.0 | 12 | 15650 | 0.35 | 13897 | 2.77 | 17.7 | 177.68 | 25.38 | 158 | 1586.28 | 21.95 | |
| 2975 | 6.0-12.0 | 12 | 12000 | 0.29 | 10165 | 0.33 | 5.75 | 58.6 | 1.31 | 80.4 | 820 | 8.9 | |
| RS-395SH | 15130 | 6.0-12.0 | 12 | 3650 | 0.66 | 2949 | 0.25 | 5.83 | 59.5 | 1.8 | 30.4 | 310 | 1.06 |
| 18100 | 6.0-25.0 | 24 | 9900 | 0.09 | 8465 | 0.52 | 11.24 | 114.5 | 9.94 | 76.05 | 775 | 3 | |
| 15100R | 6.0-24.0 | 24 | 10300 | 0.07 | 8893 | 0.38 | 7.09 | 72.3 | 6.68 | 54.9 | 560 | 2.66 | |
