RK-3530 12V 24V dc motor 10000r/rim high speed high torque electric motor with gearbox for Water pump

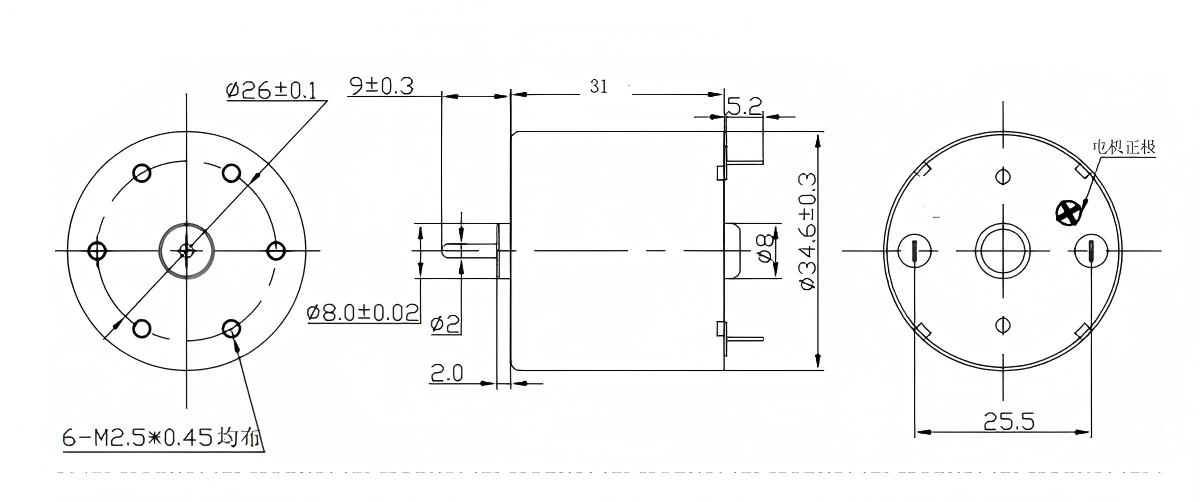

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Model | Voltage | No Load | Maximum Efficiency Point | Stall | |||||
| V | Speed | Current | Speed | Current | Torque | Power | Torque | Current | |
| r/min | A | r/min | A | g.cm | W | g.cm | A | ||
| RK-3530-27147 | 12 | 10000 | 0.15 | 8200 | 1.0 | 100 | 8.4 | 600 | 6 |
| RK-3530-12485 | 24 | 6000 | 0.04 | 4900 | 0.22 | 80 | 4.0 | 410 | 1.4 |
| RK-3530-18290 | 24 | 10000 | 0.06 | 8400 | 0.32 | 100 | 8.6 | 750 | 3.4 |
