FT-280A DC Motor 12V Micro High-Speed dc motor mini brush electric motor for Door Lock Actuator

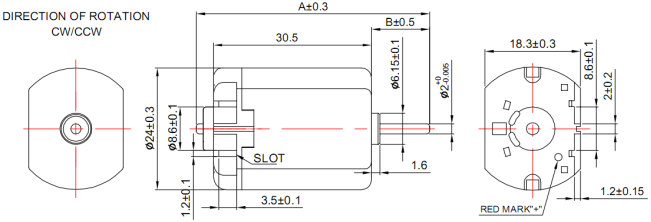

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FT-280PA | 20150 | 6.0-12.0 | 12 | 12300 | 0.115 | 10457 | 0.65 | 5.246 | 52.46 | 5.63 | 35 | 350.11 | 3.69 |
| 22125 | 3.0-13.0 | 12 | 14500 | 0.14 | 12500 | 0.91 | 4.91 | 50 | 6.41 | 37.1 | 378 | 5.85 | |
| 21120 | 6.0-12.0 | 12 | 12850 | 0.11 | 11060 | 0.68 | 4.875 | 48.75 | 5.54 | 34.9 | 349.97 | 4.2 | |
| FT-280SA | 3340 | 1.5-2.5 | 1.9 | 7850 | 0.35 | 6349 | 1.39 | 3.05 | 31.1 | 1.9 | 16 | 163 | 6.6 |
| 16225 | 6.0-15.0 | 12 | 8000 | 0.06 | 6800 | 0.33 | 3.92 | 40 | 2.8 | 21.6 | 220 | 0.9 | |
| 10425 | 6.0-25.0 | 24 | 8300 | 0.04 | 6817 | 0.18 | 3.78 | 38.5 | 2.69 | 21 | 214 | 0.84 | |
| 15250 | 6.0-15.0 | 15 | 9000 | 0.08 | 7433 | 0.38 | 4.61 | 46.1 | 3.52 | 26.4 | 264.8 | 1.8 | |
| 18182 | 6.0-12.0 | 12 | 9565 | 0.07 | 8259 | 0.44 | 4.096 | 40.96 | 3.48 | 29.9 | 299.99 | 2.56 | |
| 21130 | 6.0-12.0 | 12 | 13480 | 0.11 | 11706 | 0.73 | 4.6 | 46.9 | 5.69 | 35.3 | 360 | 4.8 | |
| 18163 | 6.0-13.0 | 13 | 11800 | 0.12 | 9747 | 0.57 | 4.9 | 50 | 5.05 | 28.4 | 289 | 2.7 | |
