RS-390/395A 12V 24V DC Motor High Speed Large Torque Brush electric motor for Headrest Adjuster/ Throttle Control

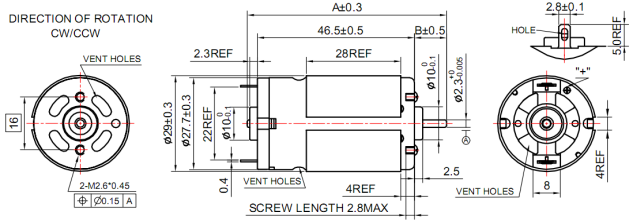

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RS-390PA | 21167 | 6.0-24.0 | 24 | 9637 | 0.09 | 8465 | 0.66 | 13.4 | 134.95 | 11.74 | 110 | 1109.62 | 4.78 |
| 20185 | 9.0-13.0 | 12 | 4880 | 0.1 | 3880 | 0.49 | 9.9 | 101 | 4.02 | 48.82 | 498 | 1.94 | |
| 5128 | 4.0-7.0 | 6 | 16080 | 0.62 | 13760 | 3.7 | 11.37 | 116 | 16.38 | 78.9 | 802 | 22.1 | |
| RS-390SA | 4535R | 6.0-9.0 | 9 | 17500 | 0.65 | 14909 | 3.74 | 15.2 | 155 | 23.81 | 103 | 1050.6 | 21.51 |
| 22128 | 6.0-12.0 | 12 | 7300 | 0.18 | 5972 | 0.81 | 10.5 | 107.1 | 6.58 | 57.9 | 590 | 3.65 | |
| RS-395PA | 2470 | 9.0-13.0 | 12 | 7300 | 0.12 | 6100 | 0.6 | 8.53 | 87 | 5.45 | 51.9 | 529 | 3.02 |
| 2265 | 20.0-25.0 | 24 | 16200 | 0.17 | 13880 | 1.04 | 12.55 | 128 | 18.23 | 90 | 918 | 6.41 | |
| 2553 | 3.0-6.0 | 6 | 4085 | 0.102 | 3449 | 0.55 | 6.2 | 62.2 | 2.21 | 39.9 | 399.64 | 2.98 | |
| RS-395SA | 2166 | 6.0-12.0 | 12 | 6900 | 0.18 | 5631 | 0.8 | 9.6 | 97.92 | 5.64 | 52 | 530 | 3.54 |
| 16120 | 9.0-18.0 | 12 | 4100 | 0.08 | 3285 | 0.32 | 6.16 | 61.6 | 2.08 | 31 | 310 | 1.29 | |
| 3226 | 6.0-12.0 | 12 | 20148 | 0.44 | 17267 | 2.64 | 12 | 120.05 | 21.3 | 83.9 | 839.59 | 15.83 | |
| 3132 | 6.0-12.0 | 12 | 16800 | 0.36 | 14406 | 2.08 | 11.59 | 118 | 15.91 | 78.4 | 800 | 12 | |
