NdFeB Magnet FF-N30VA dc motor 12mm 3v 12v micro DC motor for RC Model and Toy

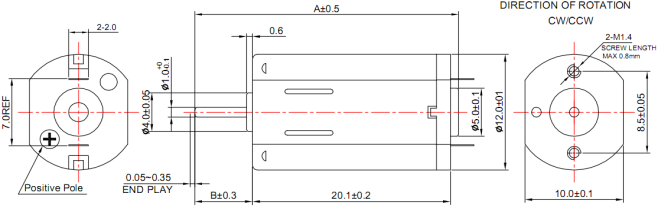

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FF-N30VA | 06320 | 2.0-5.0 | 4.6 | 5300 | 0.01 | 4100 | 0.03 | 0.18 | 1.8 | 0.08 | 0.8 | 8 | 0.11 |
| 09195 | 1.5-4.0 | 2.4 | 4700 | 0.017 | 3670 | 0.06 | 0.24 | 2.4 | 0.09 | 1.08 | 11 | 0.21 | |
| 1858 | 1.0-2.5 | 1.5 | 9600 | 0.06 | 7860 | 0.285 | 0.39 | 4 | 0.32 | 2.16 | 22 | 1.3 | |
| 12106 | 4.0-6.0 | 5 | 16800 | 0.035 | 14450 | 0.22 | 0.44 | 4.5 | 0.665 | 3.14 | 32.2 | 1.35 | |
| 6340 | 6.0-12.0 | 12 | 13144 | 0.012 | 10834 | 0.06 | 0.34 | 3.37 | 0.38 | 1.91 | 19.1 | 0.29 | |
| 08250 | 2.0-6.0 | 5 | 7600 | 0.011 | 7600 | 0.06 | 0.3 | 3 | 0.23 | 0.15 | 15 | 0.26 | |
| FK-N30TS | 2429 | 2.0-4.0 | 3.7 | 38954 | 0.421 | 32580 | 2.15 | 0.13 | 12.8 | 4.29 | 7.8 | 78.5 | 10.99 |
| 2427 | 2.0-4.2 | 3.7 | 38000 | 0.38 | 30000 | 2.6 | 0.12 | 12 | 0.074 | 5.9 | 60 | 7 | |
