32A390/395 Spur Gear Motor 12v 24v Carbon Brush DC Gear Motor for Vending Machine and Garden Tool

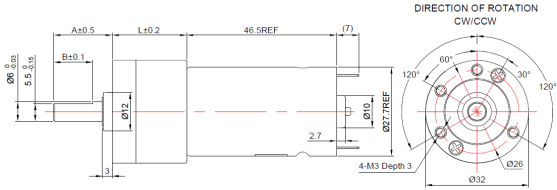

OUTLINE DRAWING： Unit:mm
GEAR BOX LENGTH (L) WEIGHT:~110g
| Gear box length L (mm) |
Number Of Stage |
General Reduction Ratios | |||||||||||
| 17.7 | 2-3 | 1/5.8 | 1/6.5 | 1/15 | 1/17.3 | - | - | - | |||||
| 20.4 | 4 | 1/10.6 | 1/40 | 1/46 | 1/52 | 1/58 | - | - | |||||
| 23.1 | 5 | 1/73 | 1/82 | 1/105 | 1/155 | 1/136 | 1/155 | - | |||||
| 25.8 | 6 | 1/278 | 1/409 | 1/466 | - | - | - | - | |||||
| 28.5 | 7 | 1/732 | 1/1228 | 1/1397 | - | - | - | - | |||||
TECHNICAL DATAS:
| Ratio | Model No. | Voltage | No Load | On Load | |||||||||
| Operating Range |
Nominal Voltage |
Current | Speed | Current | Torque | Speed | |||||||
| V | V | A | r/min | A | kg.cm | r/min | |||||||
| 1/40 | MBI-32A390-40-24375 | 6.0-24.0 | 24 | 0.21 | 390.1 | 0.95 | 3 | 333.4 | |||||
| 1/105 | MBI-32A390-105-12124 | 6.0-12.0 | 12 | 0.34 | 124.2 | 1.68 | 7 | 104 | |||||
| Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz | |||||||||||||
