37B3530 Spur Gear Motor 5V 12V high speed Electric DC gear motor with encoder for Vending Machine and Dispenser

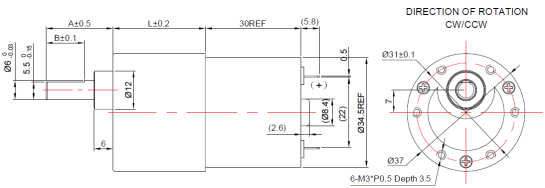

OUTLINE DRAWING： Unit:mm
GEAR BOX LENGTH (L) WEIGHT:~150g
| Gear box length L(mm) |
Number Of Stage |
General Reduction Ratios | |||||||||||
| Common | King-size | ||||||||||||
| 17.8 | 22 | 2 | 1/6.5 | 1/9.3 | 1/10 | - | - | - | - | ||||
| 21.5 | 25.2 | 3 | 1/15 | 1/19.5 | 1/20 | 1/24 | 1/30 | - | - | ||||
| 24 | 27.7 | 4 | 1/40 | 1/50 | 1/56 | 1/60 | 1/69 | 1/71 | 1/190 | ||||
| 26.7 | 30.7 | 5 | 1/125 | 1/150 | 1/168 | 1/180 | 1/210 | 1/259 | 1/270 | ||||
| 29 | 31.7 | 6 | 1/360 | 1/450 | 1/540 | 1/628 | 1/630 | 1/810 | 1/1084 | ||||
TECHNICAL DATAS:
| Ratio | Model No. | Voltage | No Load | On Load | |||||||||
| Operating Range |
Nominal Voltage |
Current | Speed | Current | Torque | Speed | |||||||
| V | V | A | r/min | A | kg.cm | r/min | |||||||
| 1/6.5 | MBI-37B3530-6.5-121060 | 6.0-12.0 | 12.0 | 0.2 | 1060 | 0.6 | 0.34 | 818.6 | |||||
| 1/70 | MBI-37B3530-70-1286 | 6.0-12.0 | 12.0 | 0.08 | 86.4 | 0.26 | 1.5 | 77.3 | |||||
| 1/210 | MBI-37B3530-210-0644 | 3.0-6.0 | 6.0 | 0.42 | 44 | 1.28 | 10 | 38.2 | |||||
| 1/622 | MBI-37B3530-622-0503 | 3.0-6.0 | 5.0 | 0.06 | 3.4 | 0.2 | 10 | 2.3 | |||||
| 1/810 | MBI-37B3530-810-0502.5 | 3.0-6.0 | 5.0 | 0.06 | 2.5 | 0.2 | 13 | 1.8 | |||||
| Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz | |||||||||||||

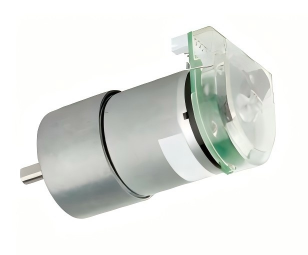

PRODUCT DISPLAY
 |
 |
 |
