55-24 AC Shaded pole Motor Single Phase high speed ac motor for Oven and Refrigerator

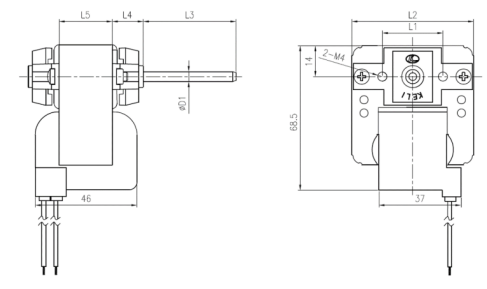

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Model | Dimension | Reference Performance | ||||||||
| L1 | L2 | L3 | L4 | L5 | D1 | No load speed (rpm) |
Speed (rpm) |
Power (W) |
Torque (mNm) |
|
| MBI 55-24 | 27.5 | 55 | 20~65 | 14 | 24 | 3.17,4,5 | 2900 | 2200 | 22 | 19.7 |
| Voltage: 100 - 240V; Frequency: 50/60Hz | ||||||||||
