72 series AC Shaded pole Motor High Speed ac electric motor for Oven and Exhaust fan

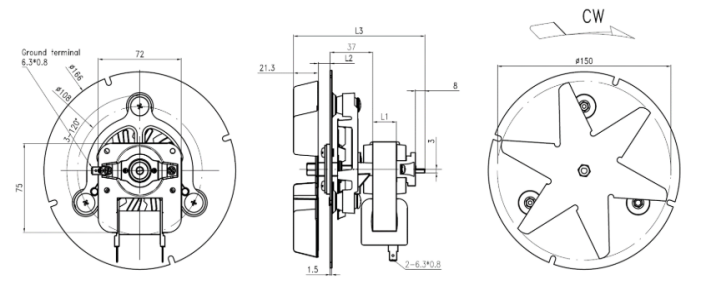

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Model | Dimension | Reference Performance | |||||||
| L1 | L2 | L3 | L4 | No Load Speed (rpm) |
No Load Power (W) |
Loading Speed (rpm) |
Loading Power (W) |
Loading Torque (g.cm) |
|
| MBI 72-14 | 13.5 | 65~90 | 33.5 | 28~50 | 2800/3200 | ≤27 | 900~1800 | ≤35 | 250 |
| MBI 72-18 | 18 | 70~90 | 38 | 75~110 | 2800/3200 | ≤36 | 1200~2200 | ≤45 | 330 |
| Voltage: 100 - 240V; Frequency: 50/60Hz | |||||||||
