80 series AC Shaded pole Motor Large starting torque ac high speed motor for Ventilator

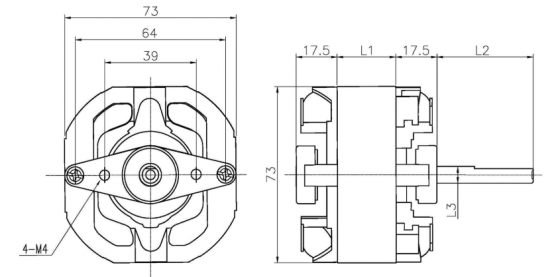

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Model | Dimension | Reference Performance | |||||||
| L1 | L2 | L3 | No Load Speed (rpm) |
No Load Power (W) |
Loading Speed (rpm) |
Loading Power (W) |
Loading Torque (g.cm) |
Air Flow (m/s)Min. |
|
| MBI 80-13 | 13.5 | 37 | ø7、ø8 | 2600/3200 | 26 | 2200 | 32 | 110 | 6 |
| MBI 80-25 | 25 | 33 | 2600/3200 | 42 | 2400 | 50 | 180 | 9 | |
| MBI 80-35 | 35 | 31.5 | 2600/3200 | 95 | 2600 | 110 | 450 | 12 | |
