82 series AC Shaded pole Motor High Voltage ac electric motor for Refrigerat and Water heateror

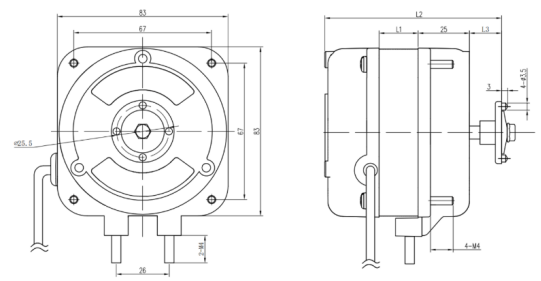

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Model | Dimension | Reference Performance | ||||||
| L1 | L2 | L3 | No Load Speed (rpm) |
No Load Power (W) |
Loading Speed (rpm) |
Loading Power (W) |
Loading Torque (mNm) |
|
| MBI 82-13 | 13 | 80-94 | 16-30 | 1400/1700 | ≤26 | 1200~1600 | ≤33 | 30 |
| MBI 82-19 | 19 | 86-100 | 16-30 | 1400/1700 | ≤32 | 1200~1600 | ≤40 | 48 |
| MBI 82-25 | 25 | 92-106 | 16-30 | 1400/1700 | ≤40 | 1200~1600 | ≤48 | 65 |
| Voltage: 100 - 240V; Frequency: 50/60Hz | ||||||||
