83 series AC Shaded pole Motor high voltage ac motor for Refrigerator and Water heater

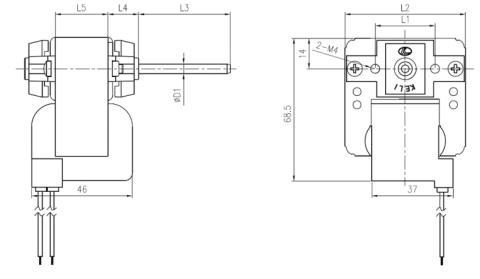

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Model | Dimension | Reference Performance | ||||||||
| L1 | L2 | L3 | L4 | L5 | No Load Speed (rpm) |
No Load Power (W) |
Loading Speed (rpm) |
Loading Power (W) |
Loading Torque (mNm) |
|
| MBI 83-12 | 48.8 | 25-40 | 15-30 | 5 | φ6 or φ6.35 | 1400/1700 | ≤31 | 1250 | ≤40 | 30 |
| MBI 83-15 | 51.8 | 25-40 | 15-30 | 5 | φ6 or φ6.35 | 1400/1700 | ≤37 | 1300 | ≤45 | 48 |
| MBI 83-25 | 61.8 | 25-40 | 15-30 | 5 | φ6 or φ6.35 | 1400/1700 | ≤42 | 1350 | ≤50 | 98 |
| MBI 83-32 | 68.8 | 25-40 | 15-30 | 5 | φ6 or φ6.35 | 1400/1700 | ≤88 | 1400 | ≤100 | 150 |
| MBI 83-35 | 71.8 | 25-40 | 15-30 | 5 | φ6 or φ6.35 | 1400/1700 | ≤101 | 1400 | ≤110 | 178 |
| MBI 83-38 | 74.8 | 25-40 | 15-30 | 5 | φ6 or φ6.35 | 1400/1700 | ≤185 | 1400 | ≤200 | 150 |
| Voltage: 100 - 240V; Frequency: 50/60Hz | ||||||||||
