1034 Coin Motor 10MM 3V Micro Electric Vibration dc motor for Beauty instrument products and Nail clippers

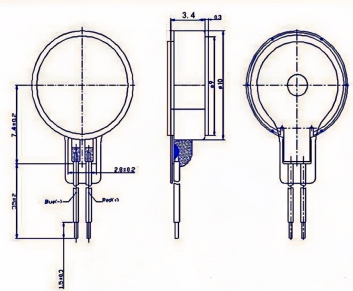

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| 1034A | 2.0-5.0 | 3 | 11000 | 0.075 | / | / | / | / | / | / | / | / | |
