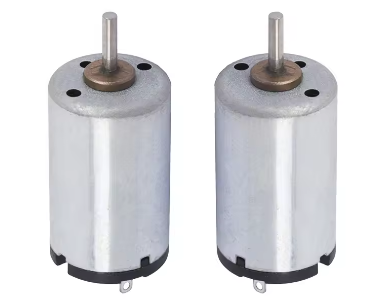

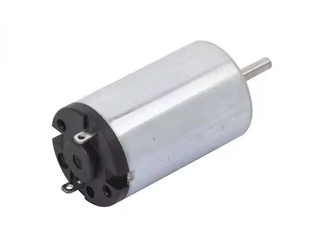

RF-1220CA DC Motor 5 Volt High-Speed Micro dc motor sale brushed vibration motor for Toy

Short Description:

This product is a micro dc motor.Its characteristics include NdFeB Magnet,Precious Metal Brush,Stainless Steel Shaft and Oil-impregnated Bearing.It can be applied to Door Lock Actuator,Tooth Brush,Massager and Toy.We provide specialized on-demand customization services, welcome to inquire.

CONTACT NOW

Product Detail

Product Tags

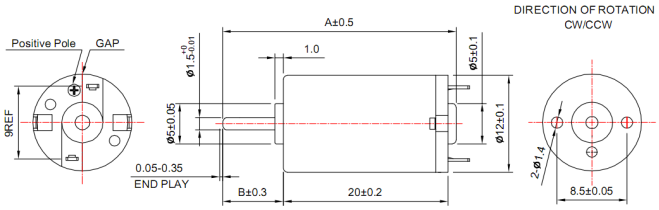

OUTLINE DRAWING： Unit:mm

TECHNICAL DATASHEETS：

MODEL		VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
		OPERATING	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
		RANGE	V	r/min	A	r/min	A	mNm	g.cm	W	mNm	g.cm	A
RF-1220CA	08230	2.0-5.0	5	14000	0.04	9800	0.15	0.31	3.1	0.31	1.078431373	11	0.35
	07260	2.0-5.0	5	12520	0.034	9241	0.1	0.21	2.14	0.21	0.82	8.18	0.29
	10155	2.0-5.0	4.5	18630	0.064	14430	0.22	0.33	3.26	0.49	1.45	14.48	0.76
	09180	2.0-4.0	3	11500	0.04	8600	0.12	0.18	1.8	0.16	0.74	7.5	0.37
	09178	4.0-7.0	6	20400	0.07	15500	0.22	0.46	4.7	0.75	1.92	19.6	0.7
	10140	2.0-4.0	3	12500	0.07	9125	0.18	0.27	2.8	0.26	1	10.2	0.5
	07290	3.0-12.0	6	11840	0.05	8231	0.114	0.36	3.66	0.31	1.2	12	0.26
	1670	1.0-2.0	1.5	13500	0.11	9637	0.42	0.254	2.59	0.48	0.98	10	1.3
	1480	1.5-4.5	3	21270	190	15819	0.55	0.49	4.87	0.79	1.9	19	1.6
	12110	1.0-3.0	1.5	8200	0.082	5916	0.212	0.02	0.21	0.127	0.076	0.76	0.55
	1395	1.0-3.0	2.4V	15500	0.14	10000	0.46	0.39	4	0.41	1.18	12	1.1
