63 series AC Shaded pole Motor high voltage metal ac electric motor for Water heater

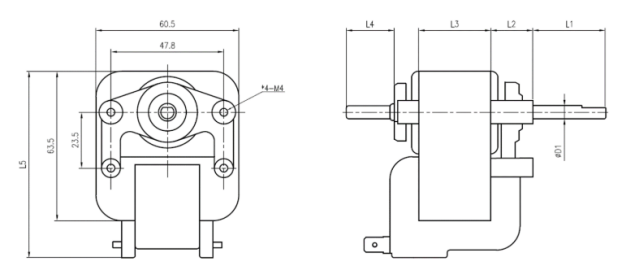

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Model | Dimension | Reference Performance | ||||||||
| L1 | L2 | L3 | L4 | L5 | D1 | Max.lift (cm) |
Speed (rpm) |
Power (W) |
Torque (mNm) |
|
| MBI 63-22 | 35~100 | 14 | 22.5 | 15~30 | 80 | 4.62,5.53,6 | 500 | 2500 | 45 | 55 |
| MBI 63-30 | 35~100 | 14 | 30.5 | 15~30 | 80 | 4.62,5.53,6 | 650 | 2550 | 65 | 70 |
