48 series AC Shaded pole Motor Large Torque ac electric motor for Central air conditioning

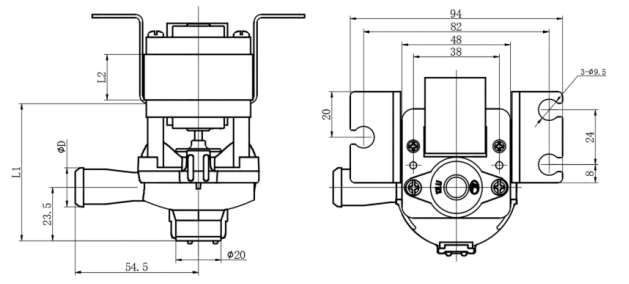

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Model | Dimension | Reference Performance | |||||||||
| L1 | L2 | ΦD | No Load Speed (rpm) |
No Load Power (W) |
Loading Speed (rpm) |
Loading Power (W) |
Loading Torque (g.cm) |
Flow Rate (ml/Min) Min. |
Rated Lift (cm) Min. |
Limit Lift (cm) Min. |
|
| MBI 48-16 | 60/80 | 15.5 | 14/17 | 2800 | 6 | 2500 | ≤9 | 100 | 400 | 700 | 1000 |
| MBI 48-20 | 60/80 | 20 | 14/17 | 2800 | 7 | 2500 | ≤10 | 150 | 500 | 1200 | 1300 |
| Voltage: 100 - 240V; Frequency: 50/60Hz | |||||||||||
