FS-360/365A DC Motor High-Speed 3Slots / 5Slots Armature brush high torque dc motor for Power Tool

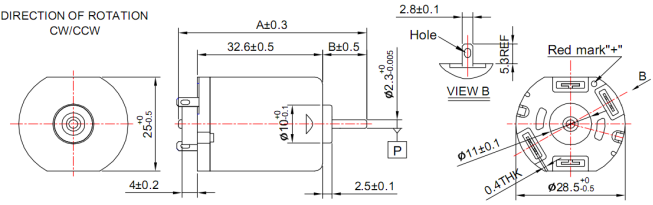

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FS-365SA | 2347 | 6.0-14.0 | 13.5 | 21800 | 0.27 | 18400 | 1.46 | 6.4 | 65.28 | 12.32 | 41 | 418.2 | 7.9 |
