RF/RC-370H DC Motor 6V 12V High-Speed High Torque brush dc motor for Blood Pressure Meter

Short Description:

This product is a micro dc motor.Its characteristics include Metal End Cap,Oil-impregnated Bearing,Precision Metal Brush/Carbon Brush and Carbon Steel Shaft.It can be applied to Air Conditioning Damper Actuator,Blood Pressure Meter,RC Model,Styling Brush and Printer.We provide specialized on-demand customization services, welcome to inquire.

CONTACT NOW

Product Detail

Product Tags

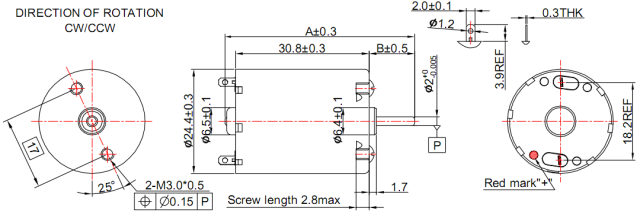

OUTLINE DRAWING： Unit:mm

TECHNICAL DATASHEETS：

MODEL		VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
		OPERATING	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
		RANGE	V	r/min	A	r/min	A	mNm	g.cm	W	mNm	g.cm	A
RF-370CA	061700	6.0-24.0	24	1320	0.003	1000	0.008	0.98	10	0.1	4.02	41	0.26
	16335	2.0-12.0	12	5800	0.018	5167	0.147	2.07	20.7	1.1	1.9	190	1.2
	10800	12.0-30.0	24	5100	0.015	4310	0.082	2.58	26.3	1.16	16.7	170	0.45
	13350	3.0-12.0	12	5600	0.03	4900	0.14	1.96	20	1.01	14.7	150	0.85
	13350	6.0-12.0	9	4200	0.025	3507	0.127	1.78	18.15	0.65	10.78	110	0.64
	13510	6.0-12.0	9	4500	0.026	3706	0.121	2.22	22.7	0.67	12.6	128.6	0.57
	12560	4.0-12.0	12	3700	0.018	3090	0.091	2.03	20.7	0.66	12.3	125	0.46
	12560	4.0-7.0	6	2700	0.015	2214	0.072	1.08	11	0.25	6	61.2	0.33
	11630	6.0-12.0	12	3183	0.01	2674	0.05	1.53	15.34	0.42	9.58	95.89	0.3
RF-370CH	15370	6.0-12.0	12	5600	0.026	4850	0.46	2.46	24.63	1.2	18.5	185	1.06
	11600	18.0-30.0	24	6500	0.018	5605	0.11	3.23	33.03	1.9	23.5	240	0.7
	11670	9.0-13.0	12	3037	0.011	2533	0.055	2.1	20.9	0.43	12.4	126.2	0.28
	12520	6.0-13.0	12	3800	0.01	3284	0.08	1.55	15.8	0.53	11.38	116	0.48
	24110	3.0-7.0	6	9100	0.08	7985	0.57	2.28	23.2	1.9	18.5	189	4.1
	20140	4.0-7.0	6	7300	0.055	6280	0.36	2.12	21.6	1.388	15.1	154	2.24
RF-370SH	18202	3.0-6.0	6	4424	0.056	3687	0.28	2.5	25	0.95	15	150.07	1.4
RC-370CH	20123	3.0-6.0	6	8000	0.07	6878	0.42	2.4	24.5	1.71	17	173	2.55
RC-370CH	25145	3.0-5.0	5	5495	0.059	4763	0.38	2.66	26.63	1.3	19.9	199.91	2.47
RC-370SH	4730	3.0-5.0	4.5	17500	0.55	15199	3.63	7.2	73.4	11.51	55	561	24
	10680	6.0-24.0	24	5000	0.018	4313	0.11	3.21	32.18	1.43	23.4	234.21	0.69
	18139	6.0-12.0	12	10000	0.13	8439	0.7	5.8	59.2	5.17	37.5	382.5	3.8
