64 series AC Shaded pole Motor 20/25/30 high speed metal ac motor for Air fryer and Oven

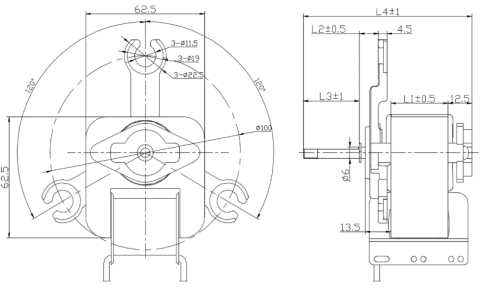

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Model | Dimension | Reference Performance | |||||||
| L1 | L2 | L3 | L4 | No Load Speed (rpm) |
No Load Power (W) |
Loading Speed (rpm) |
Loading Power (W) |
Loading Torque (g.cm) |
|
| MBI 64-20 | 20 | 10~45 | 25~50 | 75~165 | 2800/3200 | ≤25 | 1000~2200 | ≤45 | 350 |
| MBI 64-25 | 25 | 10~45 | 25~50 | 80~170 | 2800/3200 | ≤40 | 1000~2300 | ≤70 | 450 |
| MBI 64-30 | 30 | 10~45 | 25~50 | 85~175 | 2800/3200 | ≤50 | 1100~2350 | ≤90 | 550 |
| Voltage: 100 - 240V; Frequency: 50/60Hz | |||||||||
