62 series AC Shaded pole Motor High Torque ac fan motor for Oven and Fireplace

Short Description:

This product is an AC Shaded pole motor.Its characteristics include Large starting torque,Low noise,Wide speed range and Simple construction.It has Metal Gear Case.It can be adapted to Oven,Exhaust fan,Fireplace,Heater and Microwave oven.We provide specialized on-demand customization services,welcome to inquire.

CONTACT NOW

Product Detail

Product Tags

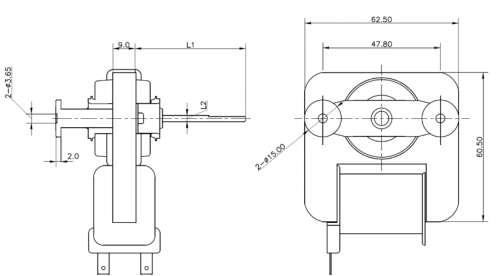

OUTLINE DRAWING： Unit:mm

TECHNICAL DATASHEETS：

Model	Dimension		Reference Performance
Model	L1	L2	No Load Speed (rpm)	No Load Power (W)	Loading Speed(rpm)	Loading Power (W)	Loading Torque (9.cm)
MBI 62-09	10~60	Φ2.5 or Φ3.17 or Φ4Φ6	2800/3200	≤12	1200~2600	≤15	100
Voltage: 100 - 240V; Frequency: 50/60Hz

Previous: 64 series AC Shaded pole Motor 20/25/30 high speed metal ac motor for Air fryer and Oven

Next: 61 series AC Shaded pole Motor Metal ac electric 100-240V motor for Exhaust fan

All of which are RoHS,REACH compliant, have both an UL and a CE certificate, We have own brands MBI and RS, also we could do OEM for you, and we are ISO9001:2015 & IATF16949:2016 certified.
