8140 Servo Motor 40mm 81g Metal Gear Case brushless motor for Robotic arm and Gimbal

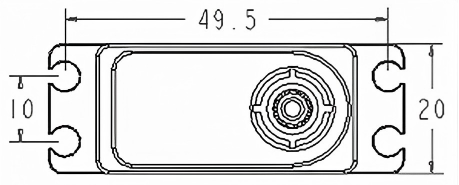

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Product name | 8140MG | |||
| Product size | 40.0*20.5*37.5mm | weight：81g±5% | ||
| Working voltage | 4.8V | 8.4V | ||
| No-load speed | 0.28sec/60° | 0.21sec/60° | ||
| No-load current | 180mA | 230mA | ||
| Stall torque | 38.5kg.cm | 42.3kg.cm | ||
| Stall current | 4300mA±10% | 5100mA±10% | ||
| Control signal | Pulse width modification | |||
| Pulse | 500~2500usec | |||
| Midpoint position | 1500usec | |||
| Rotation angle | 180°±3°(when 500~2500usec) | |||
| Dead zone width | 2usec | |||
