MG90S Servo Motor 4.8v 6v 180 degree micro brushless motor for Smart car and Model aircraft

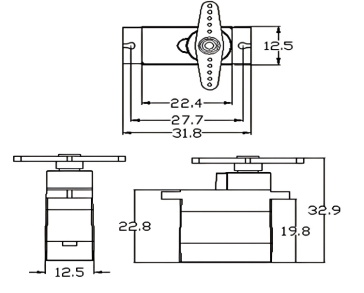

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Product name | MG90S | |||
| Product size | 22.4*12.1*22.8mm weight：13.5g±5% | |||
| Working voltage | 4.8V | 6V | ||
| No-load speed | 0.12sec/60° | 0.09sec/60° | ||
| No-load current | 90mA | 90mA | ||
| Stall torque | 1.8kg.cm | 2.0kg.cm | ||
| Stall current | 750A±10% | 860A±10% | ||
| Control signal | Pulse width modification | |||
| Pulse | 500~2500usec | |||
| Midpoint position | 1500usec （Backward error）≤1° | |||
| Rotation angle | 180°±3°(when 500~2500usec) | |||
| Dead zone width | 8usec | |||
