1.8 Degree 42MM Planetary gear stepper motor Metal Gear with Planetary Gearbox for Electronic processing equipment

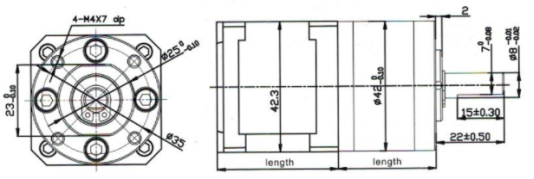

OUTLINE DRAWING： Unit:mm

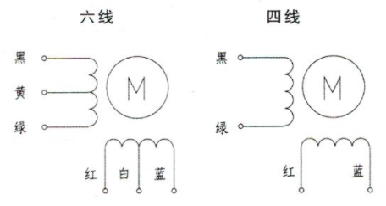

WIRING DIAGRAM： Unit:mm
Specifications：
|
ltem |
Speclficatuions |
|
Step Angle |
1.8° |
|
Step Angle Accuracy |
±5%（tull step.noload） |
|
Resistance Accuracy |
±10% |
|
Inductance Accuracy |
±20% |
|
Temperatru Rise |
80°CMax.（rated current,2 phase on） |
|
Ambient Temperatuar |
-20℃~+50℃ |
|
Insulation Resistance |
100MΩMin.,500VDC |
|
Dielectric Strength |
500VAC/ for one minute |
|
Shaft Radial Play |
0.02Max.（450g-load) |
|
Shaft Axial Play |
0.08Max.（450g-load) |
|
Max.radial force |
28N（20mm foom the flange) |
|
Max.axial force |
10N |
Hybrid Stepping Motor Specifications：
| Model No | Rated Voltage |
Current /Phase |
Resistance l /Phase |
Inductance Phase |
Holding Torque |
#of Leads | Moment of inertia |
Weinght | Orientation torque |
Length | |
| Single output shaft | Double output shaft | V | A | Ω | mH | g-cm | g-cm² | kg | g-cm | mm | |
| MBI42STH25-0404A | MBI42STH25-0404B | 9.6 | 0.4 | 24 | 36 | 1.7 | 4 | 35 | 0.22 | 120 | 34 |
| MBI42STH34-0956A | MBI42STH34-0956B | 4 | 0.95 | 4.2 | 2.5 | 1.6 | 6 | ||||
| MBI42STH34-0406A | MBI42STH34-0406B | 9.6 | 0.4 | 24 | 15 | 1.6 | 6 | ||||
| MBI42STH34-0316A | MBI42STH34-0316B | 12 | 0.31 | 38.5 | 21 | 1.6 | 6 | ||||
| MBI42STH34-1334A | MBI42STH34-1334B | 2.8 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | ||||
| MBI42STH40-1206A | MBI42STH40-1206B | 4 | 1.2 | 3.3 | 3.2 | 2.6 | 6 | 54 | 0.28 | 150 | 40 |
| MBI42STH40-0806A | MBI42STH40-0806B | 6 | 0.8 | 7.5 | 6.7 | 2.6 | 6 | ||||
| MBI42STH40-0406A | MBI42STH40-0406B | 12 | 0.4 | 30 | 30 | 2.6 | 6 | ||||
| MBI42STH40-1684A | MBI42STH40-1684B | 2.8 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | ||||
| MBI42STH48-1206A | MBI42STH48-1206B | 4 | 1.2 | 3.3 | 2.8 | 3.17 | 6 | 68 | 0.35 | 200 | 48 |
| MBI42STH48-0806A | MBI42STH48-0806B | 6 | 0.8 | 7.5 | 6.3 | 3.17 | 6 | ||||
| MBI42STH48-0406A | MBI42STH48-0406B | 12 | 0.4 | 30 | 25 | 3.17 | 6 | ||||
| MBI42STH48-1684A | MBI42STH48-1684B | 2.8 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | ||||
| MBI42STH60-1206A | MBI42STH60-1206B | 7.2 | 1.2 | 6 | 7 | 6.5 | 6 | 102 | 0.5 | 280 | 60 |
