45KG Servo Motor High control precision brushless motor for Car model and Robotic arm

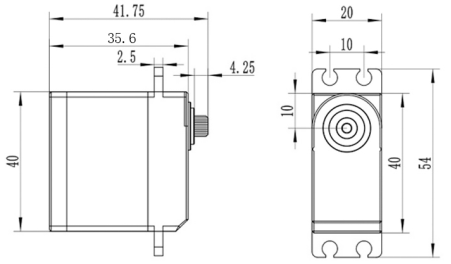

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Product name | 45KG Servo motor | |||
| Product size | 40*20.0*35.6mm | weight：80g±5% | ||
| Working voltage | 4.8V | 8.4V | ||
| No-load speed | 0.15sec/60° | 0.11sec/60° | ||
| No-load current | 550mA | 780mA | ||
| Stall torque | 35kg.cm | 49kg.cm | ||
| Stall current | 3260A±10% | 5100A±10% | ||
| Control signal | Pulse width modification | |||
| Pulse | 500~2500usec | |||
| Midpoint position | 1500usec | |||
| Rotation angle | 180°±3°(when 500~2500usec) | |||
| Dead zone width | 5usec | |||
