995/996 Servo Motor Metal Gear Case brushless motor for Robotic arm and Fixed wing

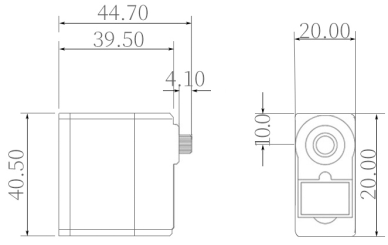

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Product name | 995/996MG | |||
| Product size | 40.5*20.0*39.5mm | weight：45g±5% | ||
| Working voltage | 4.8V | 6V | ||
| No-load speed | 0.18sec/60° | 0.15sec/60° | ||
| No-load current | 160mA | 170mA | ||
| Stall torque | 9kg.cm | 13kg.cm | ||
| Stall current | 1100A±10% | 1300A±10% | ||
| Control signal | Pulse width modification | |||
| Pulse | 500~2500usec | |||
| Midpoint position | 1500usec | |||
| Rotation angle | / | |||
| Dead zone width | 8usec | |||
