7115 Servo Motor Stronger load capacity electric brushless motor for Car model

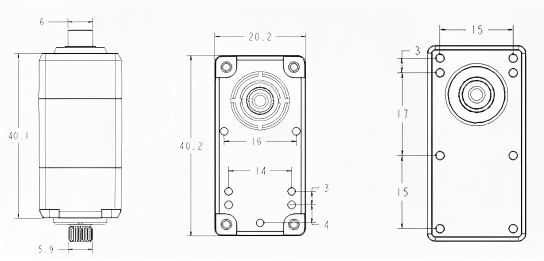

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Product name | 7115MG | |||
| Product size | 40.0*20.5*40.5mm | weight：56g±5% | ||
| Working voltage | 4.8V | 8.4V | ||
| No-load speed | 0.25sec/60° | 0.19sec/60° | ||
| No-load current | 210mA | 260mA | ||
| Stall torque | 14.5kg.cm | 17.2kg.cm | ||
| Stall current | 2100A±10% | 2700A±10% | ||
| Control signal | Pulse width modification | |||
| Pulse | 500~2500usec | |||
| Midpoint position | 1500usec | |||
| Rotation angle | 180°±3°(when 500~2500usec) | |||
| Dead zone width | 5usec | |||
